SIMALUBE 그리스 자동급유기 ≫한글주소:자동급유기≪

혁신적인 원가절감/ 부품의 수명연장/ 급유 System 간소화/ 인건비 절감




스위스 정밀 기계산업의 기술이 이루어낸 차세대 자동 윤활제 급유 장치 Simalube는 각부문별 국제 특허를 받았으며 정확한 윤활 관리를 기본으로 그 신뢰성은 이미 북미/유럽 지역에서는 많은 분야에 적용 인증되어 사용하고 있습니다.

	SIMALUBE는 별도의 인력이나 동력없이도 1개월에서 12개월까지 선택, 설정만하면 자동으로 주유되므로 인건비/유지비 감소와 간단 편리한 급유 System을 조성하여 관리가 용이합니다.

	Simalube는 외부의 특정한 장치없이 1개월에서 12개월 까지 사계절, 주/야로 사용이 가능합니다. 이는 Simalube의 국제 특허 제품인 Dry cell에 의한 것으로서 이미 서구 의학계에서 그 정확성과 신뢰성이 입증되어 사용되고 있습니다. 자동급유기의 관건은 신뢰성입니다. 적유,적량, 적법,적시의 문제를 Simalube가 해결 할것입니다.

	Simalube는 북미/유럽의 유수 기관으로 부터 안정성이 입증되었으며 특히 독일의 안전공사 TUV에서 GS안전공인 마크를 획득하였습니다.

	기존 동일 용량의 제품보다 소형/ 경량으로 어떠한 개소에도 장착이 가능합니다. 1. 주변온도 : -20℃에서 55℃까지 외부의 온도에 영향을 받지 않음 2. 방수 : 완벽한 방수처리로 옥외는 물론 수면아래에서도 사용이 가능함. 3. 윤활제 : 기존의 제품과 달리 사용자가 임의로 윤활제를 선정,충진하여 사용할수도 있음

	본제품은 1회 사용이 완료된후에도 Grease재충진 및 Dry cell의 교체로 재사용을 할수 있으며 폐기시에는 생분해가 되는 환경친화형 제품입니다.

Technical information

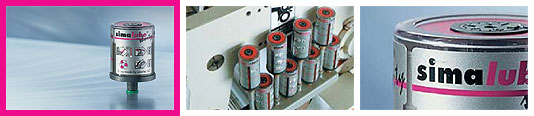

The simalube lubricator is available with a content of 125ml and 60ml. The compact installation size of the simalube 60ml is ideal for small amounts of space.

	simalube	simalube <shorty>
Type	automatic longterm grease and oil dispenser
Power generation	hydrogen gas producing drycells
Working pressure	max. 3 bar
Content	125ml	60ml
Adjustment	stepless 1-12 months
Operating temperature	-20°C ... +55°C ambient temperature (note: grease consistency changes with temperature)
Operation / Usage	Grease dispenser can be installed in any position, even under water.
Usage period	Within 2 years of filling date
Stock temperature	recommended at 20°C +/- 5°C
Weight fulll	~190g	~115g
Weight empty	~75g	~60g
Dimensions

Available lubricants

The lubricant range for simalube contains modern and approved high-performance lubricants, especially modified for the requirements of oil and grease dispensers. For all greases and oils data sheets are available.

The following factory filled lubricants are available:

No.	Application	Temperature range (°C)	Base oil	Thickener	Oil viscosity (at 40°C)
SL 01	Multipurpose grease	-30/+120	Mineral oil	Li/Ca	118 mm²/s
SL 02	Multipurpose grease with MoS2	-25/+130	Mineral oil	Li	370 mm²/s
SL 04	High temperature grease	-20/+160	Mineral oil	Be	555 mm²/s
SL 06	Fluid grease	-40/+110	Mineral oil	Li/Ca	98 mm²/s
SL 09	Biodegradable grease	-20/ +80	Synthetic	Li/Ca	100 mm²/s
SL 10	Food industry oil	-30/+140	Synthetic	AI	400 mm²/s
SL 14	Chain oil	-10/ +90	Mineral oil		68 mm²/s
SL 15	High temperature chain oil	0/+250	Synthetic		265 mm²/s
SL 18	Food industry oil	-15/+150	Synthetic		220 mm²/s

How it Works

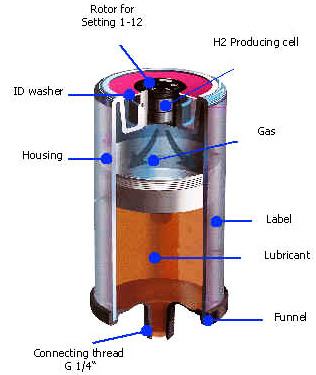

The simalube lubricator has a transparent housing which contains a piston. This piston is driven by our patented gas-producing dry-cell and it expels the lubricant through a threaded funnel at the base of the lubricator.

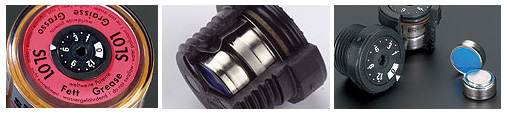

The lubricator is filled with either 125 ml or 60 ml of lubricant and it features a tri-section label. The cartridge on top of the lubricator contains the two gas-producing dry-cells, a spring, a contact plate and a 1 to 12 months index plate. The lubricator and the cartridge form a gas-tight unit.

The piston moves downwards by way of the gas pressure which is generated by the gas-cell. The gas volume is adjusted by turning the index plate to the appropriate position. This position can be changed any time indefinitely.

The Gas Cell

Gas cells in the size and shape of hearing-aid batteries work according to electrochemical principals. Without any external power supply they produce hydrogen gas on demand.

The world wide patented gas cells with high energy density are ideally suitable for simple and inexpensive dispension of liquids or viscous substances. However, they are also used as a hydrogen source.

This is how it works.
Short-circuiting the two outside poles activates the cell, which then starts to produce gas. The desired volume of gas per hour is determined by a means of an electric load resistor (Ra). The greater the load resistance, the slower the rate of gas production. The gas cell is produced in direct proportion to the current flowing through the cell. The gas escapes through two holes in the bottom of the cell. If the circuit is interrupted, gas production is stopped immediately.

* 적용범위
    Simalube는 윤활이 필요한 모든 산업현장 유관 시설의 전 윤활개소에 적용됩니다.
    1) 산업현장 : 공조기, 콘베이어, 크레인,각종펌프, 모터, 송풍기...
    2) 유기시설 : 놀이기구의 구동부위,승강기, 흡배기 Fan...
    3) 기타 윤활이 필요한 모든 베아링 부위.

* 사용방법


1.	3mm L렌치를 이용하여 원하는 급유기간(급유량)을 설정하여 조정한다. (ex:1=1개월 /6=6개월)	2.	Simalube를 윤활 개소에 직접 또는 호스/파이프등으로 간접 연결을 한다.	3.	주유 완료후 Dry cell을 제거한 후에 윤활제를 충진하고 Dry cell을 새것으로 교체하여 재 사용한다.
	그리스 용량:125cc		connecting nipple 1/4“

Paper and cardboard industry

Two simalube lubricators with square brushes lubricate a spur gear on a conveyor system	Lubrication of bearings for paper roll	Pedestal bearing in cardboard mill

Automation

Industrial robot application	simalube lubricators mounted using clamps; the lubricant is transported to the right place by hoses	Square portal application

Pumps, motors and compressors

Lubrication of bearings; simalube is installed with a 90° bent connection	Lubrication of bearings with upsidedown simalube lubricators. simalube can be installed in any position	Lubrication of compressor bearings

Electric motor	Lubrication of shaft bearings	Lubrication of bearings in a power plant

Mines, quarries and cement plants

Cement plant with many possible applications for simalube lubricators	Multiple installation with hose	Quarry application

Plastics industry

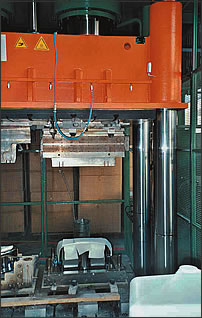

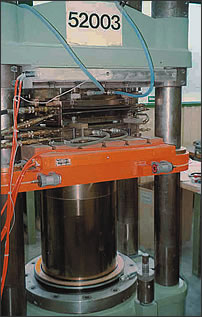

simalube lubricates an assembly robot at Lego	Plastic press	Plastic press. simalube mounted with two clamps to withstand vibrations

Transportation and conveyor installations

Cable railway for transporting goods	Detail: the cable guides are lubricated with simalube	Conveyor belt in mill

Lubrication of cable railway clamping arrangement	Detail of clamping arrangement. The lubricator is attached with the practical clamp	simalube with patented elevator brush. The rail is continuously lubricated from three sides

☜클릭
≫ 상기제품에 대하여 견적서가 필요하신 업체는 견적요청서를 보내주세요. ≪

토탈21 Tel: 02-459-1249/ 119: 010-8460-7721/ Fax: 02-6280-7721
Copyright(c) 2000, 토탈21 All rights reserved.Design By Total21
사업자등록번호 : 120-03-42829
E-mail:total21@empal.com
서울특별시 강남구 일원동 640-3 대동빌딩 305호 토탈21 대표 : 이창현

Printing industry
		Multiple installation on rotary offset machine
Multiple installation with hose on collating / folding machine at a printshop	Some of the many applications in a print-shop

"Harris" printing machine	Some of the many applications in a print-shop

Waste water and sewage treatment systems

Jaw of gap gauge	Jaw of gap gauge (close up)	Multiple installation on pump in waste water treatment plant	Flange bearing in sewage treatment plan

Plummer block	Details of sewage treatment plant	Valves	Valve (close up)

Mechanical engineering

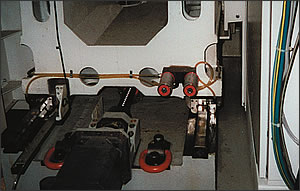

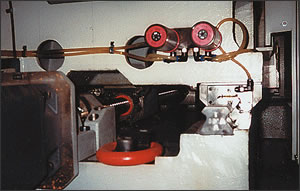

Mikron processing centre	Detail of Mikron processing centre

Vehicles

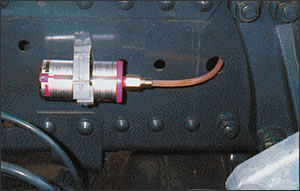

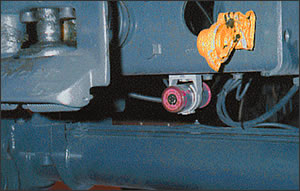

Long maintenance intervals are very important for the Mercedes Actros. simalube perfectly fits into this concept and is used to lubricate the trailer coupling	Detail of simalube lubricator, also lubricating the trailer coupling for a Mercedes Actros

Cranes

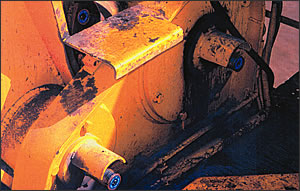

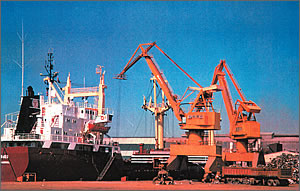

Large deck cranes	Detail of deck crane: There are many, many applications for simalube lubricators here

Shipping
	simalube lubricators lubricate two different areas on this boat: the gland and moving parts of the ship's engine
